Product Details:
Payment & Shipping Terms:
|
| Heating Zone Length: | 2932 Mm | Temp Accuracy: | ± 1C |
|---|---|---|---|
| Control: | PLC + PC | PCB Width: | 50 - 400mm ( Or Customized ) |
| Conveyor Speed: | 20-1500（mm/min ) | Machine Dimension: | 5150*1490*1510 (mm) |
| Product Name: | 8 Zones Reflow Oven | Temp Deviation: | ± 2C |
| High Light: | PLC PCB SMT Reflow Oven,SMT Reflow Oven 380V,400mm PCB Reflow Oven Machine |
||
SMT Machine Lead Free 8 Zones Reflow Oven RF-H800I
PCB SMT Production Machine Lead Free Reflow Oven 8 Heating Zones
Specifications of Lead Free 8 zones Reflow Oven
| Reflow Oven | RF-H800I |
| Running / Starting Power (kw) | 8.5 / 33 |
| Heating Zone Length (mm) | 2932 |
| Weight (kg) | Approx.2100 |
| Temp Accuracy | ± 1C |
| Temp Range | Room Temperature ~ 320C |
| Control | PLC + PC |
| Cooling Type | Forced-air Coooling |
| PCB Width (mm) | 50 - 400 ( or customized ) |
| Temp Deviation | ± 2C |
| Conveyor Speed (mm/min ) | 20-1500 |
| Cooling Zone length ( mm ) | 600 |
| Mesh Belt Width ( mm ) | 460 ( or Customized ) |
| Power Supply | 3P/AC 380V OR 3P/AC 220V |
| Machine Dimension (mm) | 5150*1490*1510 |
| Parts Height | On Baoard 35mm / Under Board 20mm |
| Conveyor Type | Chain and Mesh Belt |
Product Features of Reflow Oven Equipment
1,Fully meet various requirements for lead free SMT process especially BGA, CSP packaging.
2,User-friendly interface, Windows operation system with English version
3,PLC+PID Close loop control mode to get reliable temperature control and stable profiles
4, Independent and high efficient air management system for 8 couples of top/bottom zones to make the production more flexibly and effectively.
5,Tailor -made rails with special treatment to avoid the bending and deforming
6,Standard with protection function after power off which shall ensure the PCB come out from chamber without damage or heating impact< Powerful software can monitor the temperature at real time and take the profile on line, at same time to analysis, save or print out the profiles.
7,Unique air management system with multi-layer of thermal insulation chamber to obtain the lowest power consumption.
Option Feature of Reflow Oven RF-H800I
1. Double conveyor system the inphase parallel double conveyor of chains and mesh, the width of the conducting racks can be adjusted individually.
2. Centering support system.

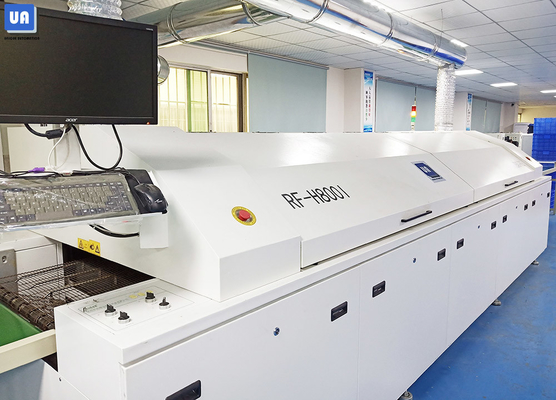

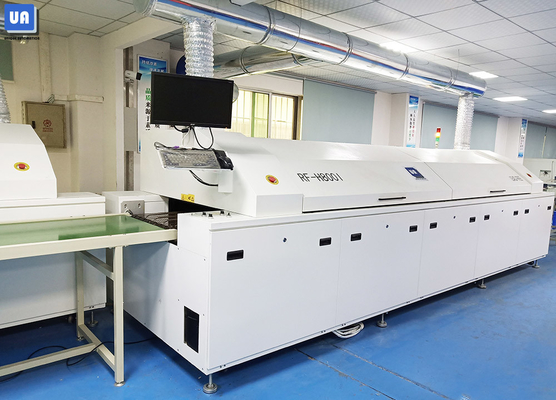

Detailed Picture of Reflow Oven 8 Zones RF-H800I

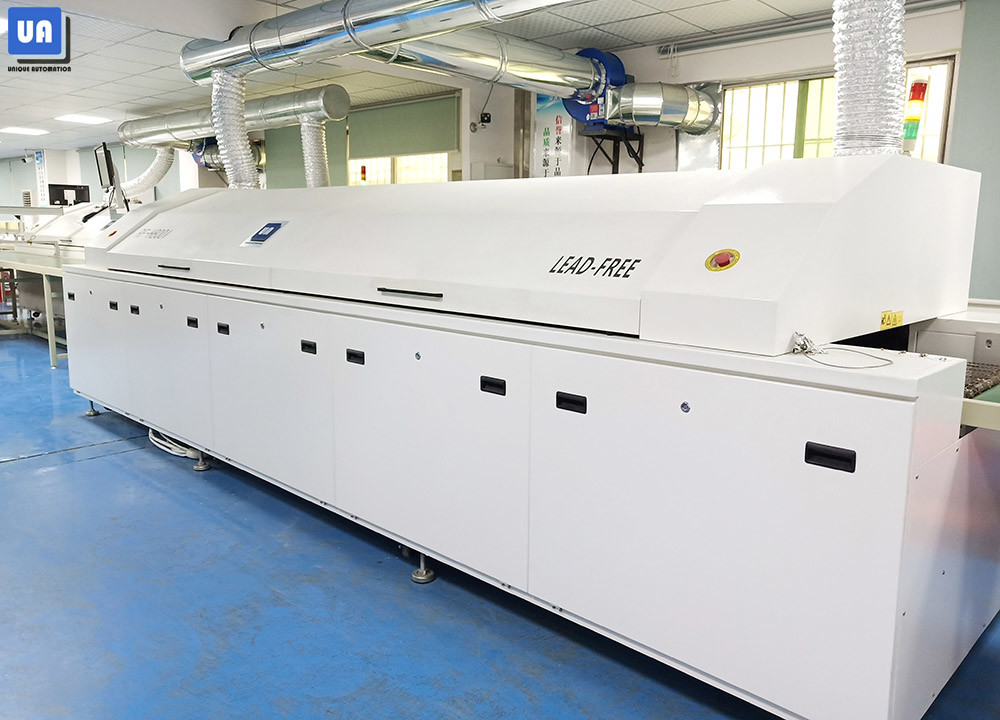

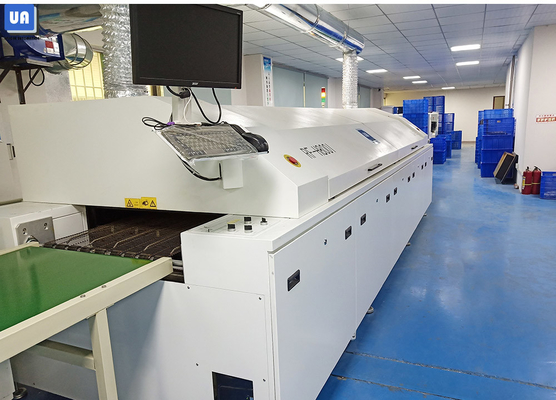

Pictures of Reflow Oven RF-H800I
