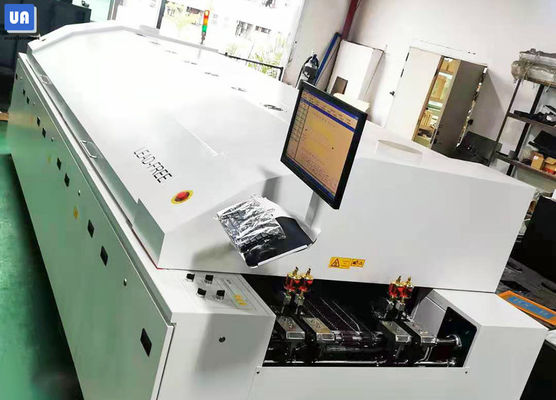

Forced Air Cooling Lead Free SMT Reflow Oven Machine With 8 Zones

Forced Air Cooling Lead Free SMT Reflow Oven Machine With 8 Zones
Forced Air Cooling Lead Free SMT Reflow Oven Machine With 8 Zones
video play

Large Image :  Forced Air Cooling Lead Free SMT Reflow Oven Machine With 8 Zones

Product Details:
Place of Origin: CHINA
Brand Name: UA
Certification: CE
Model Number: RF H800I
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: vacuum packing for sea transportation
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: USD
Detailed Product Description
Name: Reflow Oven RF-H800I Characteristic: Lead Free New Type Reflow Oven
Size: 5150*1490*1510 (mm) Weight: About 2100kg
Cooling Zone: 600 Mm Length Cooling Type: Forced-air Coooling
Temp Deviation: ± 2C Heating Zone: 2932mm Length
High Light:

8 Zones SMT Reflow Oven Machine

,

Forced Air Cooling SMT Reflow Oven

,

Lead Free SMT Reflow Soldering Oven

Lead Free Hot Air SMT Reflow Oven



Lead Free 8 Heating Zones SMT Machine Reflow Oven Equipment for Production Line



The Features of 8 Zones Reflow Oven Equipemnt:

1. Special high temperature resistant protection system (the United States of America's high density insulation rock wool in heat preservation system and special iron in furnace. It suit for lead free welding and the welding area with rosin flux recovery system to protect environment.
2. Using imported Taiwan SanYue long axis of high temperature fan motor.
3. Using Fanda thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone.
4. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the service time effectively. No contact output and the fuzzy control function by thermostat, can monitoring the changes in the outside temperature and calorific value, controlling the heating device by the minimum pulse, ensuring the high precision of temperature control & the uniform temperature in internal and the length, direction, temperature distribution, all of these meet IPC standard.



The principle of reflow soldering is divided into several descriptions:

A. When the PCB enters the heating zone, the solvent and gas in the solder paste evaporate, and at the same time, the flux in the solder paste wets the pads, component ends and pins, and the solder paste softens, collapses, and covers the solder The pads isolate the pads and component pins from oxygen.

B. When the PCB enters the heat preservation zone, the PCB and components are fully preheated to prevent the PCB from suddenly entering the welding high temperature zone and damaging the PCB and components.

C. The PCB enters the cooling zone and the solder joints are solidified; when the reflow soldering is completed.



Parameter of Reflow Oven RF-H800I

Reflow Oven RF-H800I
Running / Starting Power 8.5 / 33 kw
Control PLC + PC
Temp Accuracy ± 1C
Conveyor Type Chain and Mesh Belt
Conveyor Speed 20-1500 mm/min
Heating Zone Length 2932 mm
Power Supply 3P/AC 380V OR 3P/AC 220V
Temp Deviation ± 2C
Weight Approx.2100 kg
Machine Dimension 5150*1490*1510 (mm)
Parts Height On Baoard 35mm / Under Board 20mm
Cooling Type Forced-air Coooling
Mesh Belt Width 460 mm
PCB Width 50 - 400mm
Temp Range Room Temperature ~ 320C
Cooling Zone length 600 mm


Detailed picture of reflow oven 8 zones

Forced Air Cooling Lead Free SMT Reflow Oven Machine With 8 Zones 0Forced Air Cooling Lead Free SMT Reflow Oven Machine With 8 Zones 1
Forced Air Cooling Lead Free SMT Reflow Oven Machine With 8 Zones 2



Packing method of Reflow Oven

Packing method

Ready to ship
