|Product Name:||8 Zones Reflow Oven||Characteristic:||Hot Air And Lead Free|
|Control Mode:||PLC + PC||Cooling Zone Length:||600|
|Conveyor Speed:||20-1500（mm/min )||Options Available:||450/500 Max PCB Width Central Support For Big PCB Extra Cooling Zone|
|Power Supply:||3P/AC 380V OR 3P/AC 220V||Parts Height:||On Baoard 35mm / Under Board 20mm|
Welding Hot Air Reflow Oven Equipment,
AC380V Hot Air Reflow Oven Equipment,
PLC PC lead free reflow oven
SMT Production Line 8 Heating Zones Reflow Oven Equipment
Lead Free Welding Hot Air Reflow Oven Equipment with 8 Heating Zones
Specification of Lead Free Reflow Oven RF-H800I
|SMT Reflow Oven||RF-H800I|
|Machine Dimension (mm)||5150*1490*1510|
|Heating Zone Length (mm)||2932|
|Running / Starting Power (kw)||8.5 / 33|
|Control||PLC + PC|
|Temp Range||Room Temperature ~ 320C|
|Temp Accuracy||± 1C|
|Temp Deviation||± 2C|
|PCB Width (mm)||50 - 400 ( or customized )|
|Cooling Type||Forced-air Coooling|
|Cooling Zone length ( mm )||600|
|Conveyor Type||Chain and Mesh Belt|
|Conveyor Speed (mm/min )||20-1500|
|Mesh Belt Width ( mm )||460 ( or Customized )|
|Parts Height||On Baoard 35mm / Under Board 20mm|
|Power Supply||3P/AC 380V OR 3P/AC 220V|
|Options Available||450/500 max PCB width
Central support for big PCB
Extra cooling zone
The Control system of Reflow Oven Equipment
1. It adopts imported thermostat control which owns fuzzy logic and PID closed loop control system. It can quick response to the changes in heating condition and ensure efficient heat compensation to achieve required temperature.
2. Using thermocouple imported from Taiwan to every heating zone, it can rapid feedback changes in each temperature zone, real-time monitoring to maintain the temperature in each zone.
3 .Special SSR solid state relay matched with dedicated heat dissipating block prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of environmental temperature and calorific value, applying the heating device by minimum pulse, ensuring the high precision of the temperature control & uniform temperature within zones. The zone length, flow direction, temperature distribution, all these are meet with IPC standards.
4. Powerful heating elements, heat up fast, it’s only need approx. 20 minutes from room temperature to set-point temperature.
5 .Failure diagnosis, visual & audio alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent hard-wares from any thermal damaged.

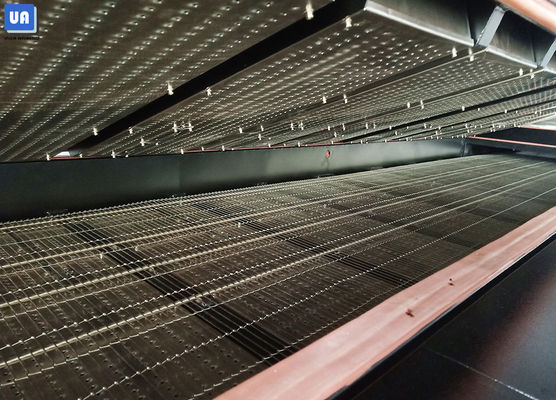

Detailed picture of reflow oven 8 zones
