| No. Of Preheating Zones: | 3 | Product Name: | RF-350A Wave Soldering Machine |
|---|---|---|---|
| Transmission Method: | Air Cylinder | Auto Flux Feeding: | Optional |
| Preheating Length: | 1800 MM | PCB Width ( L X W ): | 350 MM |
| Conveyor Width Adjustment: | Manual | Preheating Temp.: | Room Temperature : ~300C |
| High Light: | Wave Soldering Machine 1800mm,SMT PCB Wave Soldering Machine,PLC lead free wave solder |
||
Lead Free RF 350A Wave Soldering Machine
Lead Free SMT Machine PCB Wave Soldeing Machine RF-350A for Assembly Line
Basic Information of wave Solder Machine RF-350A
| Model | RF-350A |
| Spraying System | |
| Transmission Method | Air cylinder |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Exhaust Capacity | 25M3/min |
| Preheating System | |
| Preheating Model | IR tube Option : Hot Air Convection |
| No. of Preheating Zones | 3 |
| Preheating Length | 1800 MM |
| Preheating Temp. | Room Temperature : ~300C |
| Warm Time | Approx. 20/min |
| Conveyor System | |
| PCB Width ( L x W ) | 350 MM |
| Conveyor Direction | Optional |
| Conveyor Height | 750 MM |
| Componet Clearance (mm ) | 130 MM |
| Conveyor Width Adjustment | Manual |
| Conveyor Angle | 4 ~ 6 C |
Description (Wave Soldering Machine) :
♦ Simple: combined with advanced international concepts, based on the Oriental-designed operating system, easy to understand, easy to learn, easy to maintain.
♦ Expertise: learn imported reflow oven's advanced design concepts, and the components are using imported top brands.
♦ Hedging: Import hardware configuration,low failure rate in production,more than a decade service life.
♦ Safety: Based on the general rules of international design, close to imported reflow rating, the highest security level.
♦ Stable: mature software, hardware and top production processes ensures stability of each equipment.

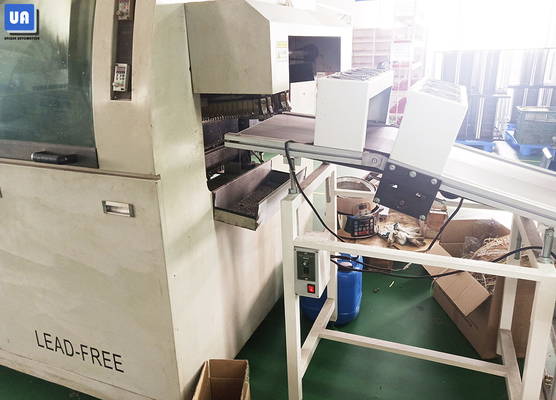

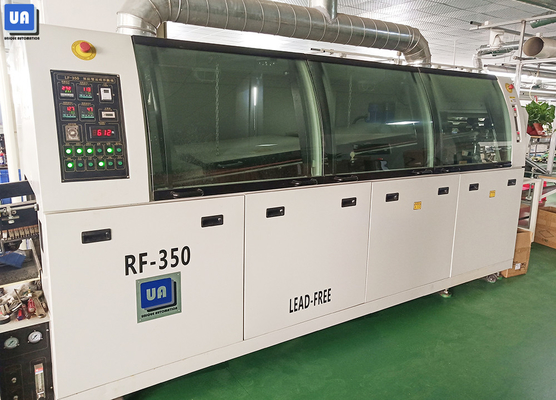

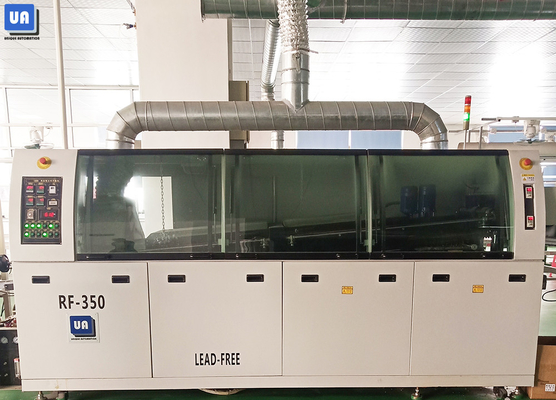

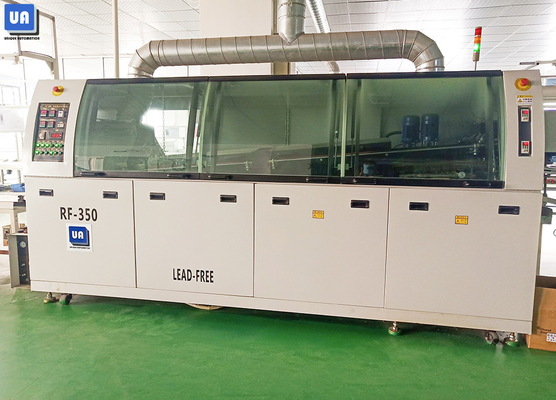

The Picture of Wave Soldering Machine
RFQ of Wave Soldering Machine RF-350A
1. What is the solder pot capacity for your wave solder machine?
We have 3 types of solder pot, 300KG / 400KG / 450KG
2. What is the solder pot material?
For the leaded solder pot, the material is stainless steel;
For the lead-free solder pot, the material is titanium alloy.
3. How we can set preheating/solder temperature?
If the machine without PC control, you can set the temperature and other soldering parameters on control panel; if the machine with PC control, you can set, save, call all parameters in software, and you can monitor the machine condition on the software interface.
4. What is standard temperature setting for wave solder machine?
Leaded soldering: Preheating1: 100℃ / Preheating2: 110℃ / Preheating3: 120℃ / Solder pot: 245℃
Lead-free soldering: Preheating1: 100℃ / Preheating2: 110℃ / Preheating3: 120℃ / Solder pot: 265℃
