Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot

China UNIQUE AUTOMATION LIMITED certification
China UNIQUE AUTOMATION LIMITED certification
Good machine. Operate effectively with your wave solder machine. Thank you !

—— Abhijeet Saxena

Nice service!Can show me the solution in time when I have questions with machine. They are patient and kindly.

—— Mike Jasen

I'm Online Chat Now

Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot

Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot
Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot

Large Image :  Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot

Product Details:
Place of Origin: China
Brand Name: UA
Certification: CE, ISO9001, SGS, CTI, ROHS
Model Number: MK-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 19000-24000
Packaging Details: Vacuum package for sea transportation
Delivery Time: 15 DAYS
Payment Terms: T/T
Supply Ability: 50 UNITS PER 1 MONTH
Detailed Product Description
Dimensions (L X W X H): 4560/1580/1730 Mm Weight: Approx. 2000 KG
Total Power: 3 Phase AC 380V, 5 Wire 50/60Hz 37 KW Running Power: 8.2 KW
Preheating Time: <15 Min Temperature Range: Room Temperature~280℃
PCB Width: 50~350mm PCB Clearance: Top 120mm / Bottom 25mm
High Light:

Hot Air Wave Solder Machine

,

Lead Free Wave Solder Machine

,

Cast Iron Wave Solder Pot

New Hot Air Lead Free Wave Solder Machine Cast Iron Solder Pot

SPECIFICATIONS



Model No. MK-350 MK-450
Dimensions (L X W X H) 4560/1580/1730 mm 4560/1580/1730 mm
Weight Approx. 2000 KG Approx. 2150 KG
Total power 3 Phase AC 380V, 5 Wire 50/60Hz 37 KW
Running power 8.2 KW
Preheating time <15 min
Temperature range Room temperature~280℃
PCB width 50~350mm 50~450mm
PCB clearance Top 120mm / Bottom 25mm
Conveyor direction L to R (Option: R to L)
Conveyor height 750±20mm (Entrance)
Conveyor speed 300~1800mm/min
Preheating zones

3 bottom hot air preheating zones

(Option: 2 groups preheating/3+3 blower motors, better energy efficiency for small size PCB production)

Temp control mode PID+SSR
Control system PC+PLC
Spray system Internal stepping motor
Conveyor finger Heavy duty double-hook finger
Solder pot capacity 480 KG 550 KG
Conveyor width adjust Manual control by handwheel (Option: electric control)
Solder pot operation Electric control
Solder pot material Cast iron + Enamel processing
Cooling mode Forced air cooling



PRODUCT DESCRIPTION

  • Closed loop with inverter control system to keep the stability and accuracy of conveyor speed;
  • The assistant pressure device nearby the entrance to prevent the PCB from slipping;
  • Spray nozzle driving by stepping motor is to make sure the coating uniformly;
  • Module design of spray fluxer system and the design of nozzle always be perpendicular to rail, which can make sure the flux penetrates PCB easily;
  • Forced air cooling system to attain the cold-down slope as per lead-free required;
  • Conveyor angle can easily be adjusted by manual;
  • Standard with hot air heating for preheating zones;
  • Module design suitable for SMT & THT component soldering;
  • Exhaust adopts centrifugal fan with double filters to avoid any flux drop PCB;
  • The level of flux container is controlled by non-contact sensors to ensure no corrosion and longer life;
  • Flux spray nozzle with self-cleaning system;
  • Standard with air knives to prevent flux expand to preheating zone;
  • Wave height control adopted with inverter; it can be set individually;
  • 1/4 HP high power mechanical pump to meet the wave as high as 15mm;
  • Light & sound alarm, emergency stop and over-load protection.

PHOTO SHOWS

3D Drawings

Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot 0

PCB input system

Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot 1

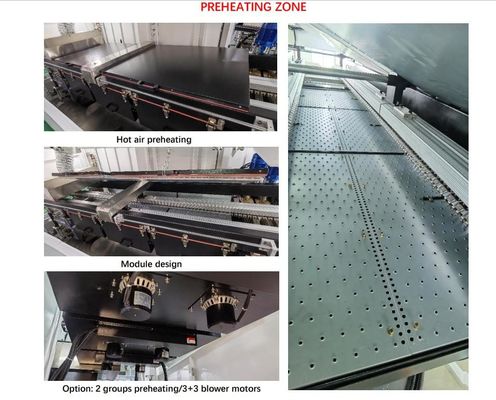

Hot air preheating    Module design

Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot 2

Cast iron solder pot

Hot Air Lead Free Wave Solder Machine Cast Iron Wave Solder Pot 3
